Brief Introduction of Metal Pall Ring

Metal pall ring, a mechanically robust packing media, is ideal for various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical.


SPECIFICATIONS

Material: carbon steel, 304, 316, 304L and 316L stainless steel , Monel, Titanium, aluminum and many other high alloy and duplex specialty metal.

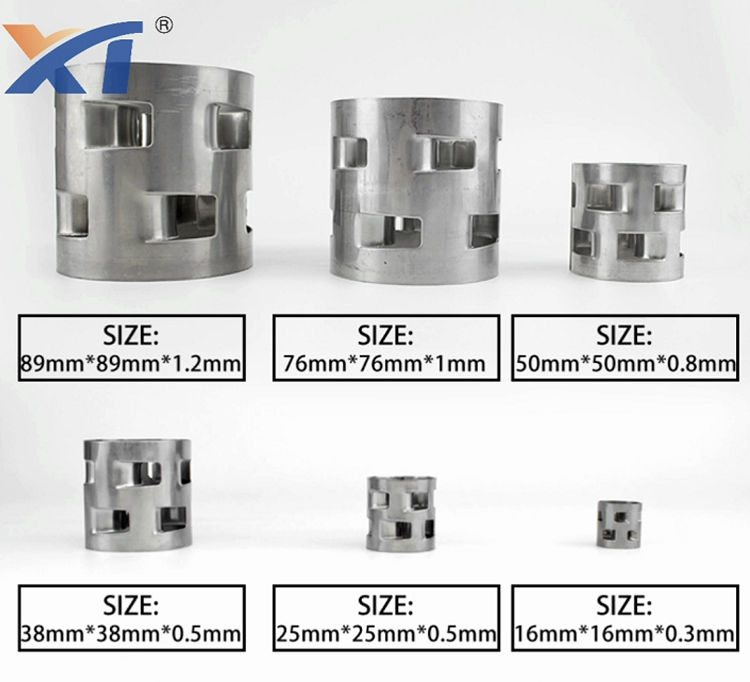

Diameter: 16 mm, 25 mm, 38 mm, 50 mm, 76 mm and 90 mm.

Thickness: 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm,0.9 mm and 1.0 mm.


KEY BENEFITS

Higher loading capacity and throughput with minimal pressure drop

Higher mass transfer efficiency and better liquid/gas distribution

Excellent mechanical strength, for longer life and improved reliability

Corrosion and rust resistance.

Acid, alkali, salty, and other chemical resistance.

Various sizes and special sizes can be customized.

Large range of different grades of steel available

Available in copper and other special alloys also


VERSATILITY

Easily wettable

High resistance to fouling

High Temperature


MECHANICAL STRENGTH

High temperature applications

Mechanically robust, lesser probability of breakage, suitable for deeper beds


TYPICAL APPLICATIONS

Steam Stripping

Quench towers

Direct contact cooling

Reaction towers

Distillation columns

Suitable for high temperature applications

H2S, NH3 & SO2 Absorption & Stripping

Separation and absorption applications at atmospheric pressure

Places where the low pressure drop is critical under vacuum

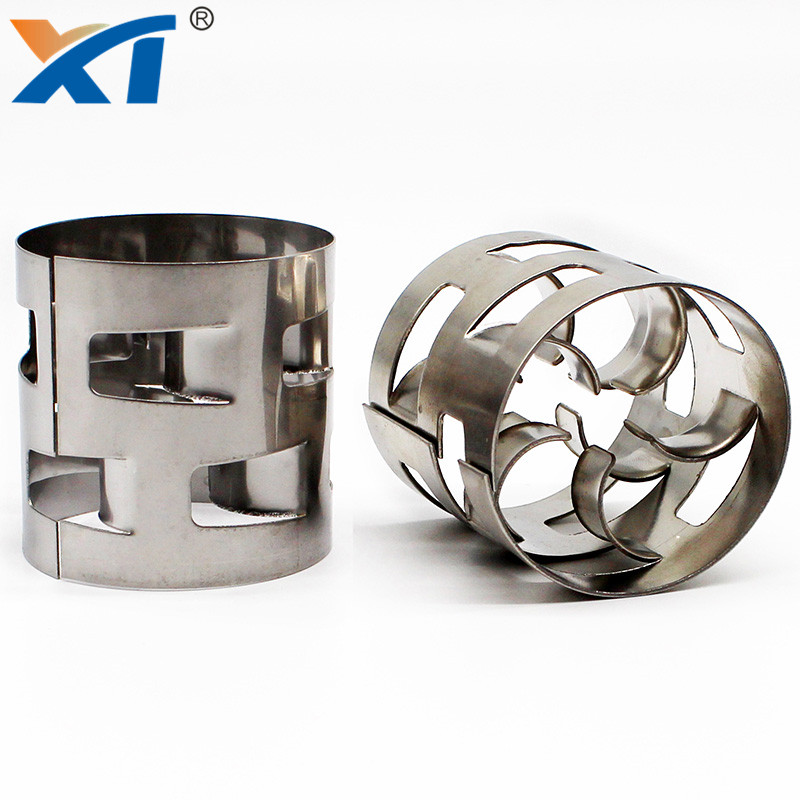

THE PALL RING HAS SIMILAR CYLINDRICAL DIMENSIONS TO THE RASCHIG RING.

It has two rows of punched out holes with fingers or webs turned into the centre of the cylinder, which significantly increases the performance of the packing.
