Specific Application：
Absorption, scrubbing and stripping services etc.
Summary：

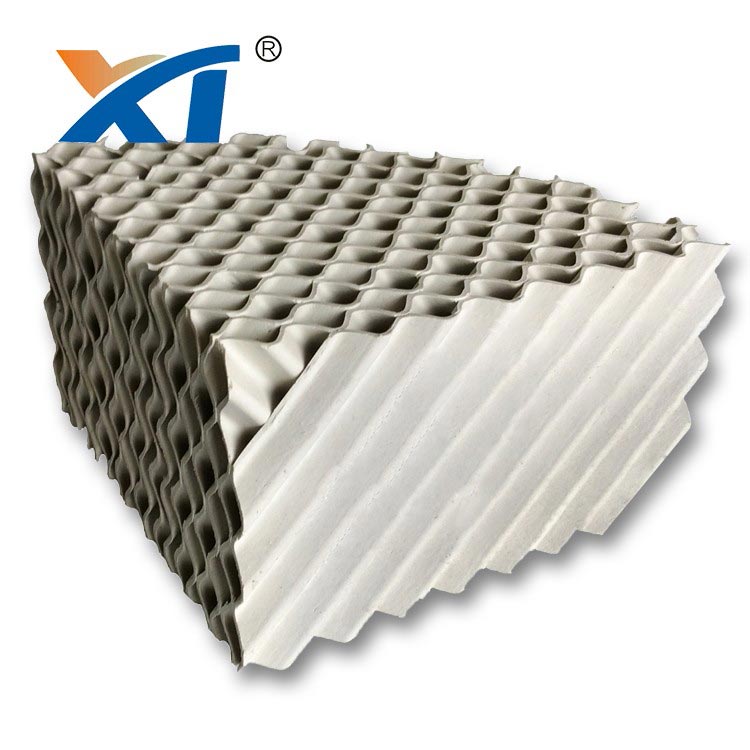

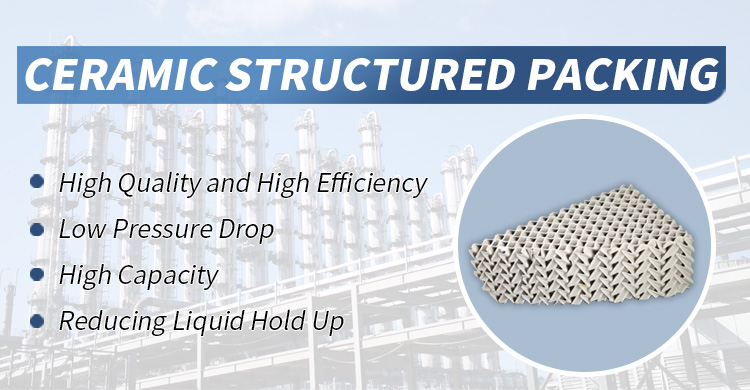

Ceramic Structured Packing consists of many packing units of similar geometric design.
Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel formcylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing. They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing.
Model: | Ceramic Structured Packing | ||||||||
Shape: | Ripple | ||||||||
| Chemical composition | |||||||||
SiO2 | Fe2O3 | CaO | Al2O3 | MgO | Other | ||||
≥72% | ≤0.5% | ≤1.0% | 17-23% | ≤1.0% | 2% | ||||
Physical property | |||||||||
Index | Value | ||||||||
Specific gravity(g/cm3) | 2.5 | ||||||||
Water absorption(wt%) | ≤0.5 | ||||||||
Acid resistance(wt%) | ≥99.5 | ||||||||
Loss in burn(wt%) | ≤5.0 | ||||||||
Max. operating Temp.(Degree C) | 800 | ||||||||
Crush strength(Mpa) | ≥130 | ||||||||
Mohs Hardness(Scale) | ≥7 | ||||||||
| Geometric characteristic | |||||||||
Spec. | Specific surface (m2/m3) | Bulk density (kg/m3) | Void ratio(%) | Obl. angle | Pressure drop (mmHg/m) | Theo. plate (m-1) | Hydraulic diameter (mm) | Liquid load (m3/m2h) | Max. Factorm/s (Kg/m3)-1 |
125Y | 125 | 320 | 90 | 45° | 1.8 | 1.8 | 28 | 0.2-100 | 3 |
160Y | 160 | 370 | 85 | 45° | 2 | 2 | 15 | 0.2-100 | 2.8 |
250Y | 250 | 420 | 80 | 45° | 2 | 2.5 | 12 | 0.2-100 | 2.6 |
350Y | 350 | 470 | 78 | 45° | 2.5 | 2.8 | 10 | 0.2-100 | 2.5 |
400Y | 400 | 500 | 75 | 45° | 3 | 3 | 8 | 0.2-100 | 2 |
450Y | 450 | 520 | 72 | 45° | 4 | 4 | 7 | 0.2-100 | 1.8 |
550Y | 550 | 620 | 74 | 45° | 5.5 | 5-6 | 6 | 0.18-100 | 1.4 |
700Y | 700 | 650 | 72 | 45° | 6 | 7 | 5 | 0.15-100 | 1.3 |
100X | 100 | 280 | 92 | 30° | 1.5 | 1 | 30 | 0.2-100 | 3.5 |
125X | 125 | 300 | 90 | 30° | 1.8 | 1.5 | 28 | 0.2-100 | 3.2 |
160X | 160 | 350 | 85 | 30° | 2 | 1.8 | 15 | 0.2-100 | 3 |
250X | 250 | 380 | 80 | 30° | 2.5 | 2.3 | 12 | 0.2-100 | 2.8 |
350X | 350 | 450 | 78 | 30° | 3 | 2.5 | 10 | 0.2-100 | 2.6 |
400X | 400 | 480 | 75 | 30° | 4 | 2.8 | 8 | 0.2-100 | 2.2 |
450X | 450 | 500 | 72 | 30° | 4.5 | 3-4 | 7 | 0.2-100 | 2 |
470X | 470 | 440 | 75 | 30° | 5 | 5 | 7 | 0.2-100 | 1.8 |
550X | 550 | 620 | 74 | 30° | 5.5 | 5-6 | 6 | 0.18-100 | 1.4 |
700X | 700 | 650 | 72 | 30° | 6 | 7 | 5 | 0.15-100 | 1.3 |
Typical Application | a) Rectifying organic halide. | ||||||||
Package : | Carton box; Wooden Case | ||||||||
Warranty: | a), By national Standard QB/T 4382-2012 b), Offer lifetime consultation on problems occurred | ||||||||
High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
High separation efficiency. Since it has much larger specific surface area compared to random packing.
Low pressure drop, which leads to reduce energy consumption largely.
Large flexibility, and scale effect is not obvious.
Suitable for all tower diameters.
Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl.
