Metal Super Saddles are the equivalent to Intalox Metal Tower Packing with advantage of: 1)A versatile packing used in distillation, absorption and other operations. 2) Used in both deep vacuum and high pressure towers. 3) VODA metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.

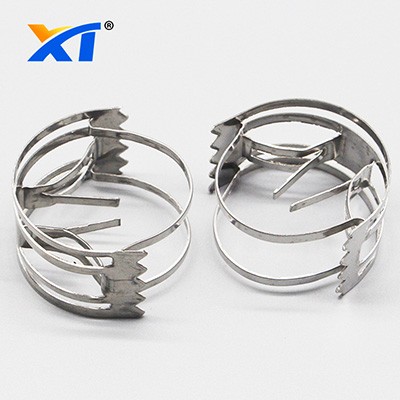

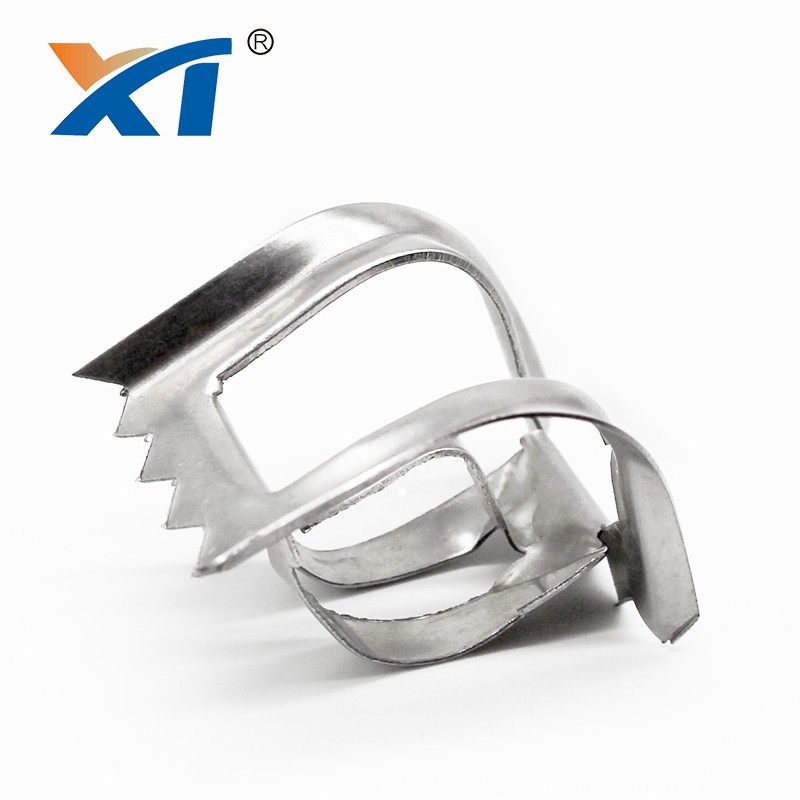

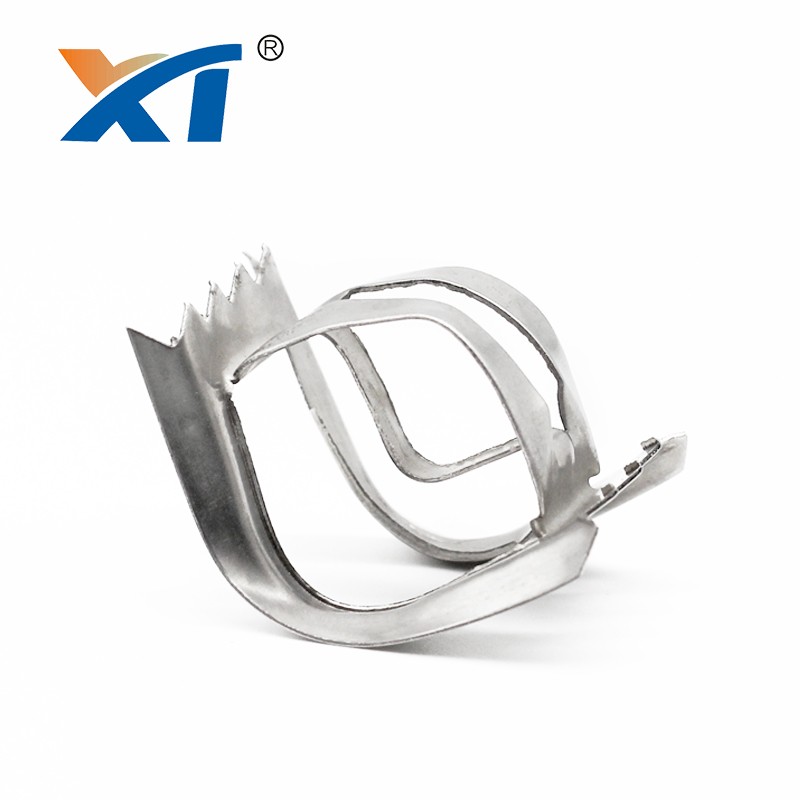

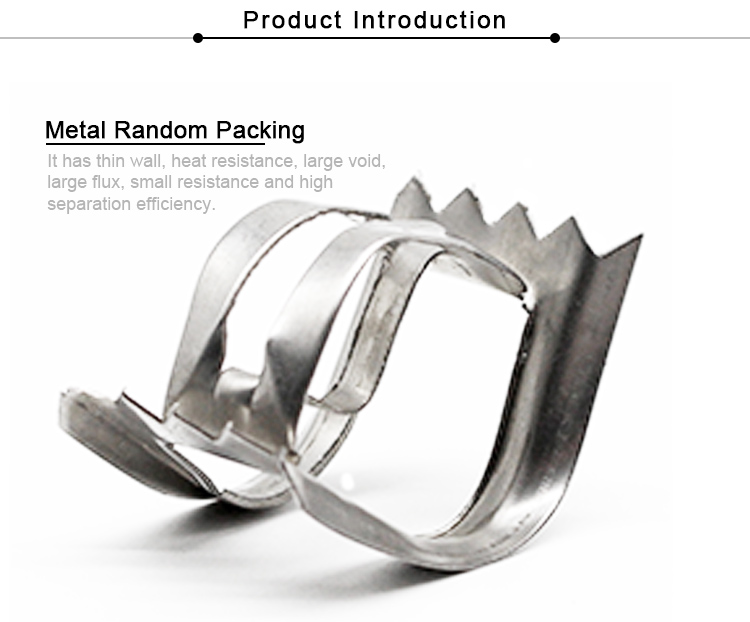

XINTAO Metal Intalox Saddle is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems. So it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
| Size | Thickness | Bulk density | Number | Surface area | Free volume | Packing Factor |
| (mm ) | (mm ) | (kg/m3 ) | per m3 | (m2/m3 ) | (% ) | m-1 |
| 15 | 0.3 | 282 | 347000 | 305 | 96.5 | 167 |
| 25 | 0.3 | 222 | 135000 | 241 | 96.8 | 135 |
| 40 | 0.3 | 147 | 50200 | 161 | 97.1 | 79 |
| 50 | 0.4 | 133 | 15000 | 104 | 98.1 | 59 |
| 60 | 0.4 | 109 | 8400 | 85 | 98.2 | 50 |
| 70 | 0.5 | 114 | 4600 | 62 | 98.6 | 39 |
Advantage:
A versatile packing used in distillation, absorption and other operations.
Used in both deep vacuum and high pressure towers.
XINTAO metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
