1) Material: PE, PP, PVC, PVDF, CPVC...etc 2) High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.

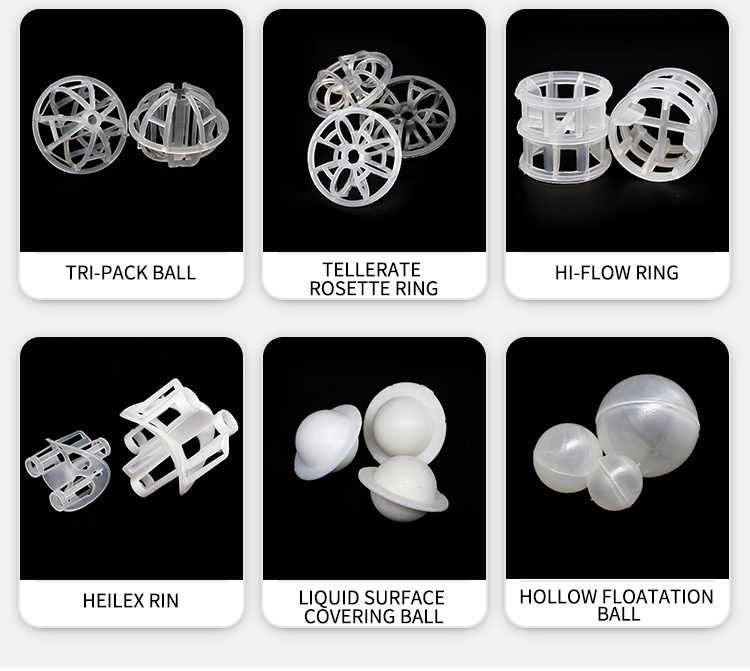

Scrubber tower and water treatment packing tellerette ring:
Specified for a wide range of industrial packed tower systems, It has proven results in scrubber and filtration systems for chemical, pulp and paper, caustic chloride, petroleum and metals finishing and refining, water treatment , VOC removal, green house gas treatment, aquaculture and fish farming.
More than ever energy conservation is at issue, and it offers major cost benefits to scrubbing systems. With maximum active surface contact between gas and scrubbing liquid, operating efficiencies are optimized and lower packing depth results minimize tower costs.
Model | Tellerate Rosette Ring | |||||||
Material | PP , RPP , PE , PVC , CPVC , PVDF , etc. | |||||||
Spec of PP Teller Ring | Dg25 | Dg47 | Dg51 | Dg59 | Dg73 | Dg95 | Dg145 | |
D*H*T | (mm) | 25*9*1.5*2 | 47*19*3*3 | 51*19*3*3 | 59*19*3*3 | 73*28*3*4 | 95*37*3*6 | 145*48*3*6 |
Number per m3 | PCS | 170000 | 32500 | 23500 | 17500 | 8000 | 3900 | 1100 |
Bulk density | (Kg/m3) | 90 | 111 | 103 | 72 | 80 | 78 | 48 |
Surface area | (m2/m3) | 195 | 185 | 180 | 150 | 127 | 94 | 65 |
Free volume | (%) | 82 | 88 | 98 | 92 | 89 | 90 | 95 |
Typical Application | Absorption, scrubbing, and stripping services | |||||||
